Tractors > SAME > Diamond 260

SAME Diamond 260 Transmission



SAME Diamond 260 tractor photo
1999 - 2004
Diamond Series
Row-Crop tractor
Series map:
Diamond 230
Diamond 260
171.5kw
193.9kw
Transmission
TransmissionZF T 7300
Typefour-speed power shift
Gears40 forward and reverse
Clutchhydraulic wet disc
Six gear, plus four in the creeper range, with four-speed power shift per gear. Power shuttle.
Speeds

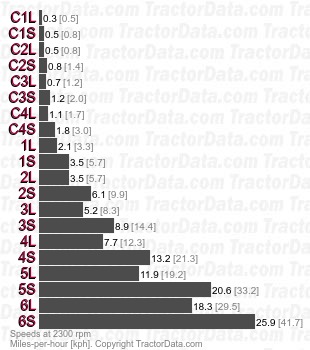

Diamond 260 T 7300 four-speed power shift speeds
