Tractors > SAME > Diamond 230

SAME Diamond 230 Engine



SAME Diamond 230 tractor photo
1999 - 2004
Diamond Series
Row-Crop tractor
Series map:
Diamond 230
Diamond 260
171.5kw
193.9kw
Engine Detail
SAME BF6M 1013 FC
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement436.1 ci
7.1 L
Bore/Stroke4.25x5.12 inches
108 x 130 mm
Power230 hp
171.5 kW
Rated RPM2350
Torque656 lb-ft
889.5 Nm
Torque RPM1350
Starter typeelectric

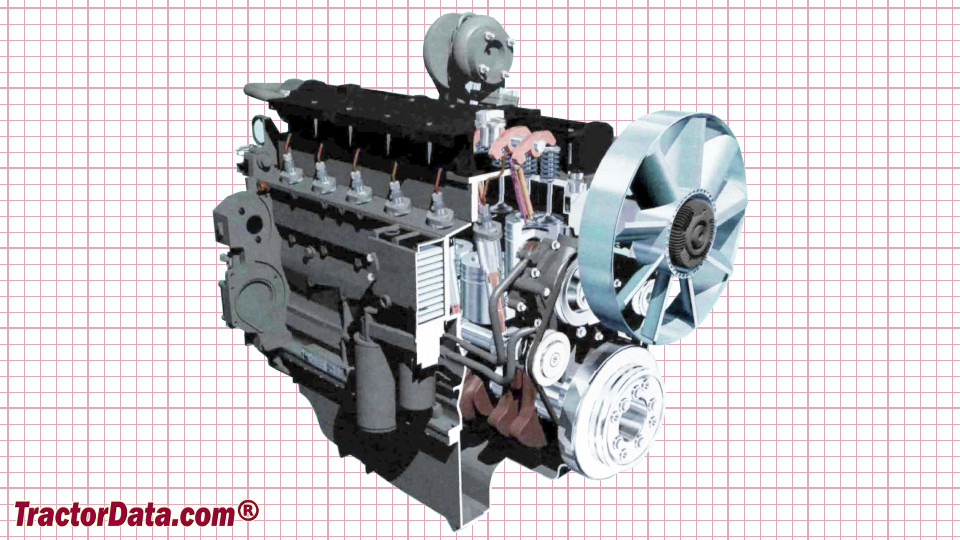

SAME Diamond 230 Engine
SAME Diamond 230 engine image
