SAME Hercules 160
|
|
| Production | |
| Manufacturer | SAME |
| Row-Crop tractor | |
| SAME Hercules 160 Engine | |
| SAME 6.2L 6-cyl diesel | |
| Fuel tank | 63.4 gal 240.0 L |
 Engine details ... | |
| SAME Hercules 160 Transmissions | |
| 12-speed synchronized | |
| 24-speed creeper | |
 Transmission details ... |
| SAME Hercules 160 Power | |
| Engine | 160 hp 119.3 kW |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | mechanical rear |
| Power steering | |
| Hydraulic wet disc brakes | |
| Cab standard with heater. Air-conditioning optional. | |
| Photos | |
 | |

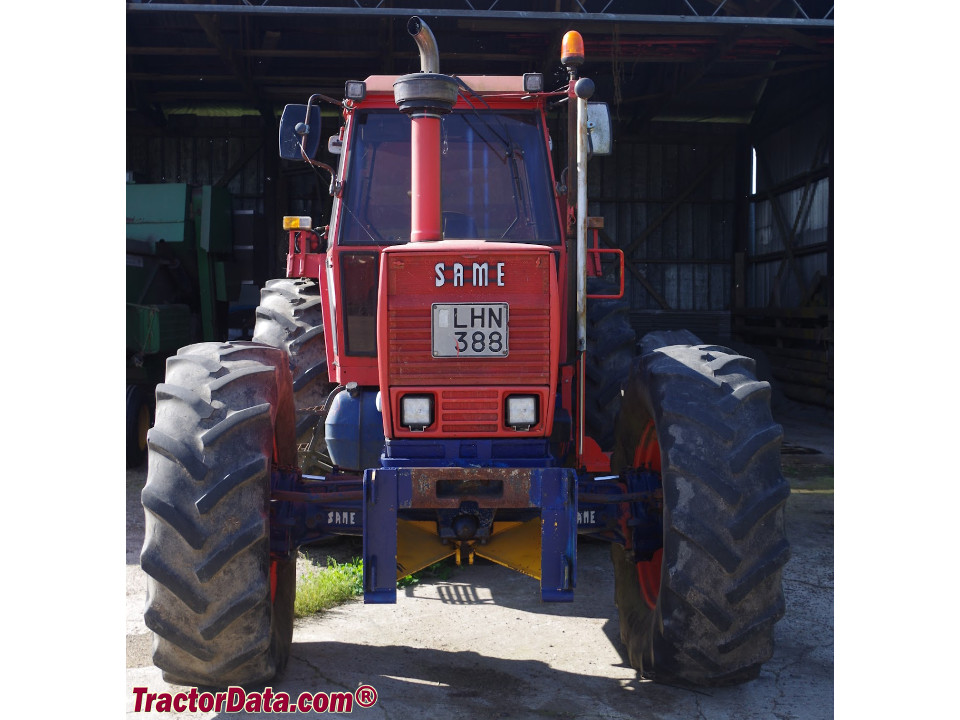

 SAME Hercules 160 photos... | |
| Hydraulics | |
| Pump flow | 15.9 gpm 60.2 lpm |
| Tractor hitch | |
| Rear Type | II |
| Rear lift | 11000 lbs 4989 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | hydraulic wet disc |
| Rear PTO Type | 540/1000 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 112.6 inches 286 cm |
| Weight | 13558 lbs 6149 kg |
| Front tire | 16.9/14-30 |
| Rear tire | 20.8-38 |
 Full dimensions and tires ... | |
| References | |
 | |
| Hercules 160 published in 1981, by SAME | |
| Hercules 160 published in 1984, by SAME |
