SAME Leopard 90 Turbo Transmission


SAME Leopard 90 Turbo tractor photo
1982 - 1984
Row-Crop tractor
Series map:
Leopard 90 Turbo
65.6kw
Transmission options
12-speed synchronized
20-speed creeper
Transmission
Typesynchronized
Gears12 forward and 3 reverse
Clutchdry disc
Four gears, plus reverse, in three ranges.
Speeds
With 16.9/14-34 rear tires and 30 kph transmission.

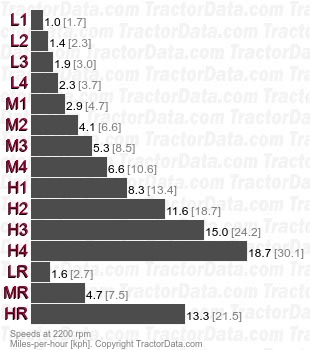

Leopard 90 Turbo  synchronized speeds
Transmission
Typecreeper
Gears20 forward and 5 reverse
Speeds
With 16.9/14-34 rear tires and 30 kph transmission.

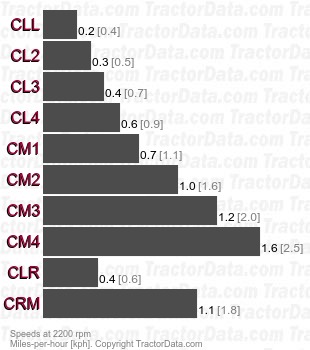

Leopard 90 Turbo  creeper speeds
