Tractors > Yanmar > YM186

Yanmar YM186

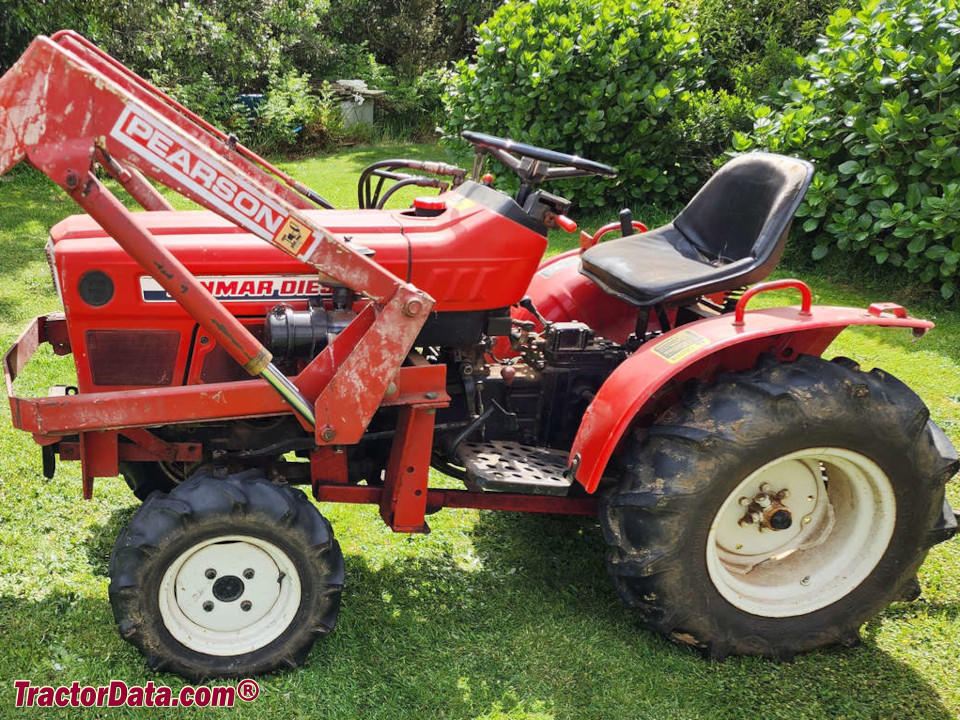

Yanmar YM186 tractor photo
1980 - 1986
Compact Utility tractor
Series map:
YM186
18.0hp
Production
ManufacturerYanmar
Compact Utility tractor
Original price was $7,400 in 1986
Variants
YM1862WD
YM186D4WD
Yanmar YM186 Engine
Yanmar 0.9L 3-cyl diesel
Engine details ...
Yanmar YM186 Transmission
9-speed three-speed power shift
Transmission details ...
Yanmar YM186 Power
Engine (gross)18 hp
13.4 kW
PTO (claimed)16 hp
11.9 kW
Mechanical
Two- or four-wheel drive
Differential lockmechanical rear
Steeringmanual
 power OptOptional
Mechanical dry shoe brakes
Open operator station. ROPS optional.
Photos
No photos of the Yanmar YM186 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel4.2 gal
15.9 L
Hydraulic system2.1 gal
7.9 L
Hydraulics
Typeopen center
Capacity2.1 gal
7.9 L
Pressure1991 psi
137.3 bar
Total flow4.8 gpm
18.2 lpm
Tractor hitch
Rear TypeI
Rear lift (at ends)661 lbs
299 kg
Rear lift (at 24"/610mm)529 lbs
239 kg
Power Take-off (PTO)
Rear PTOlive
Clutchoverrunning dry disc
Rear PTO Type540/1000 (1.375)
Engine RPM540@2430
 1000@2412
Front PTOindependent
Clutchelectro-magnetic
Front PTO Typepulley
Dimensions & Tires
Weight1433 to 1539 pounds
Front tire5.00-12
Rear tire9.5-16
Full dimensions and tires ...
Yanmar YM186 attachments
60" mid-mount mower deck
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps15
Battery volts12
Battery AH45
References

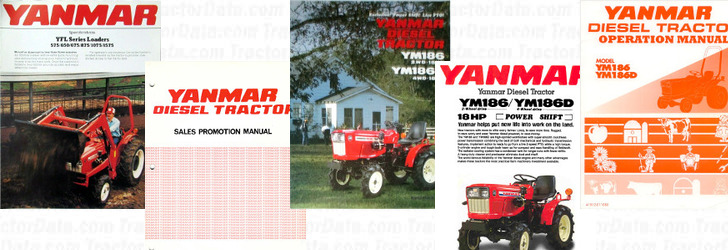

YM186 references literature
YFL Series Loaders published in 1987, by Yanmar
Sales Promotion Manual published in 1979, by Yanmar*
YM186 - YM186D published by Yanmar
YM186 / YM186D published in 1983, by Yanmar
Operation Manual Model YM186 - YM186D (41812011080) published in 1980
*Publication contains known errors.
