White 8610

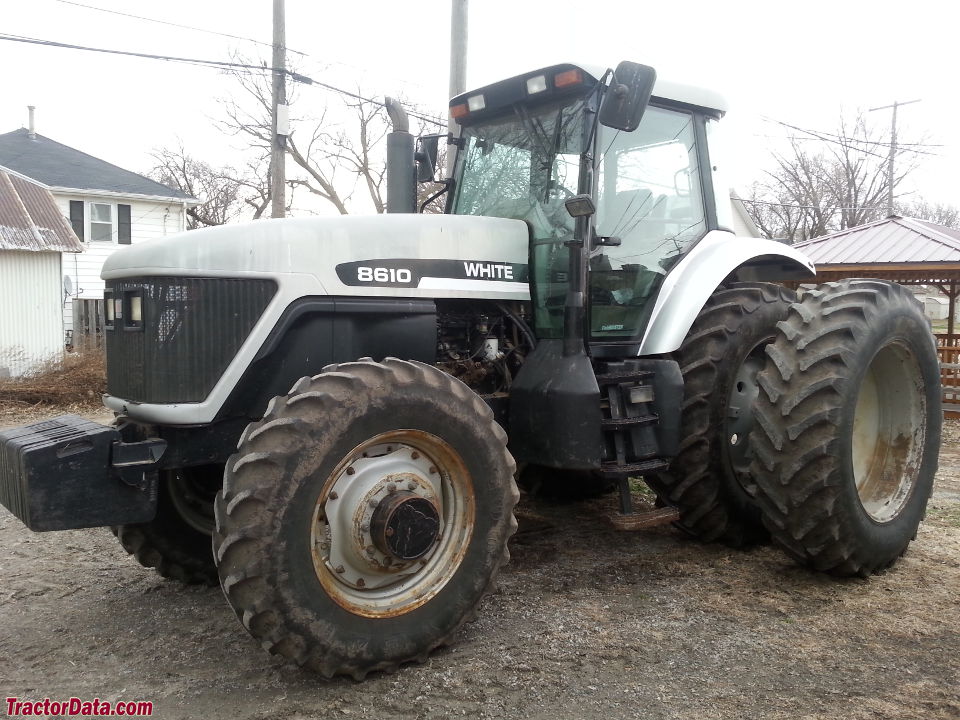

White 8610 tractor photo
1998 - 2001
FieldMaster 8010 Series
Row-Crop tractor
Series map:
8510
8610
8710
177.8hp*
200.0hp*
222.2hp*
*Estimated engine power for comparison only.
Production
ManufacturerWhite (a part of AGCO)
Row-Crop tractor
FactoriesColdwater, Ohio, USA
 Beauvais, France
Original price was $110,000 in 1999
Variants
9765similar AGCO Allis model
White 8610 Engine
Cummins 8.3L 6-cyl diesel
Fuel tank120 gal
454.2 L
Engine details ...
White 8610 Power
PTO (claimed)180 hp
134.2 kW
Drawbar (tested)160.22 hp
119.5 kW
PTO (tested)184.29 hp
137.4 kW
Performance test details ...
Mechanical
Four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard.
Hydraulics
Typeclosed center pressure-flow compensated (PFC)
Pressure2900 psi
200.0 bar
Valves4
Pump flow29 gpm
109.8 lpm
 39 gpmOptOptional
147.6 lpm
Tractor hitch
Rear TypeIII/IIIN
Rear lift (at 24"/610mm)14000 lbs
6350 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000
Engine RPM1000@2100
Dimensions & Tires
Wheelbase121 inches
307 cm
Weight18500 to 19485 pounds
Front tire14.9-28
Rear tire18.4R38
Full dimensions and tires ...
8610 Serial Numbers
1998CG001001
1999CH001001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Battery volts12
References
8610 references literature
White Loaders published in 1999, by AGCO
Field Master New Generation published in 1998, by AGCO
