| | 1993 - 1997 |
| Workhorse 6100 Series | | Row-Crop tractor |
|
Series map:
6124
6125
6144
137.8hp*
137.8hp*
158.9hp*
*Estimated engine power for comparison only.
| Engine Detail |
| CDC-Cummins 6BT5.9 |
| turbocharged diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 359 ci
5.9 L
|
| Bore/Stroke | 4.02x4.72 inches
102 x 120 mm
|
| Fuel system | direct injection
|
| Air cleaner | two paper elements
|
| Compression | 18.5:1
|
| Rated RPM | 2200
|
| Starter volts | 12
|
| Coolant capacity | 21.8 qts
20.6 L
|

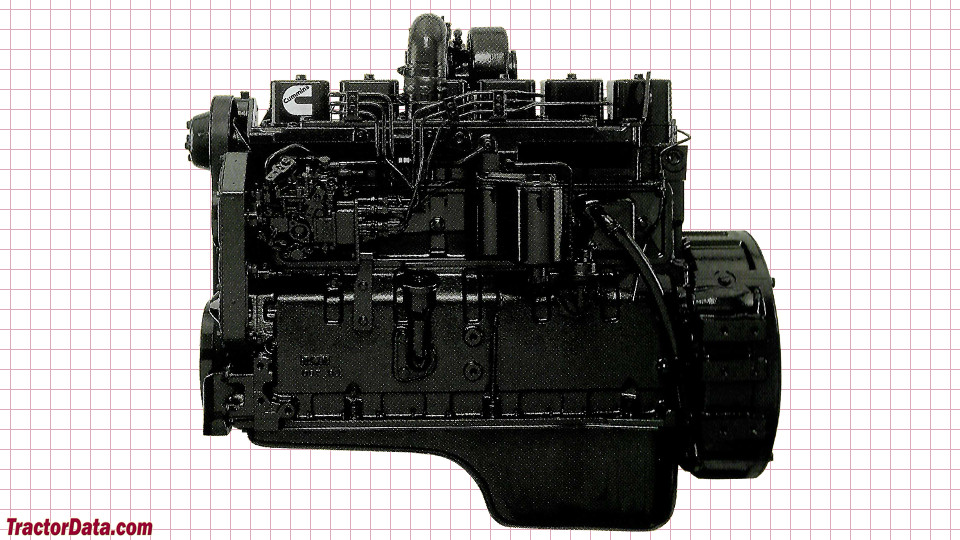

| White 6125 Engine |
 |
