International Harvester 276


International Harvester 276 tractor photo
1966 - 1971
Utility tractor
Production
ManufacturerInternational Harvester
Utility tractor
Built in Bradford, England
International Harvester 276 Engine
International Harvester 2.4L 4-cyl diesel
Engine details ...
International Harvester 276 Power
Engine37.5 hp
28.0 kW
Mechanical
Two-wheel drive
Differential lockmechanical rear
Manual steering
Disc brakes
Open operator station.
Capacity
Fuel12.7 gal
48.1 L
Hydraulic system3 gal
11.4 L
Hydraulics
Capacity3 gal
11.4 L
Pump flow7.2 gpm
27.3 lpm
Tractor hitch
Rear TypeII/I
Controlposition and draft control
Rear lift2601 lbs
1179 kg
Power Take-off (PTO)
Rear PTOtransmission
Rear PTO Type540
Dimensions & Tires
Wheelbase76.4 inches
194 cm
Weight4189 lbs
1900 kg
Front tire6.00-16
Rear tire12-28
Full dimensions and tires ...
276 Serial Number Location

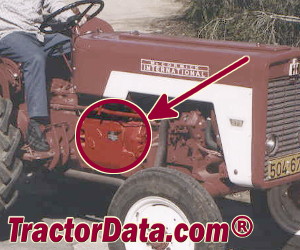

International Harvester 276 serial number location
Serial number plate on the right side of the transmission case.
References
276 references literature
276 published by International Harvester
