Series map:
645
745
49.2kw
53.7kw
| Transmission options |
| 16-speed two-speed power shift |
| 8-speed gear |
| 16-speed creeper |
| Transmission |

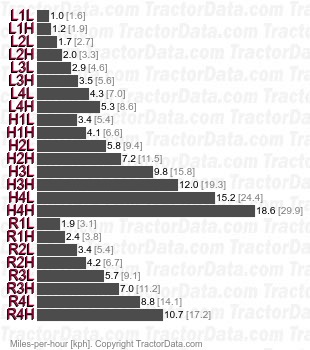

| Transmission | IH Synchron
|
| Type | two-speed power shift
|
| Gears | 16 forward and 8 reverse
|
| Four gears in two ranges, plus reverse range, with two-speed power shift. |
| Speeds |
| With 16.9R34 rear tires. |
|

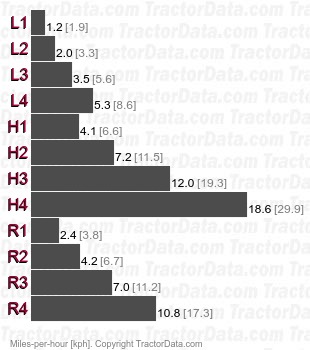

| Transmission |
| Type | gear
|
| Gears | 8 forward and 4 reverse
|
| Four gears in two ranges, plus reverse range. |
| Speeds |
| With 16.9R34 rear tires. |
|

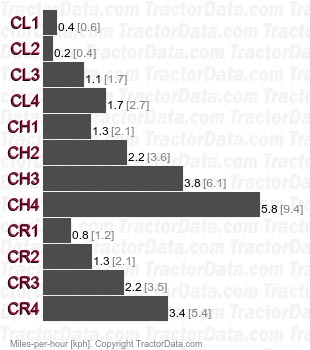

| Transmission |
| Type | creeper
|
| Gears | 16 forward and 8 reverse
|
| Speeds |
|
