International Harvester 654 Transmission


International Harvester 654 tractor photo
1972 - 1974
Utility tractor
Series map:
553
654
724
38.8kw
44.7kw
50.0kw
Transmission options
8-speed partially synchronized
12-speed partial power shift
Transmission
Typepartially synchronized
Gears8 forward and 4 reverse
Oil capacity44.4 qts
42.0 L
Speeds
With 11-36 rear tires.

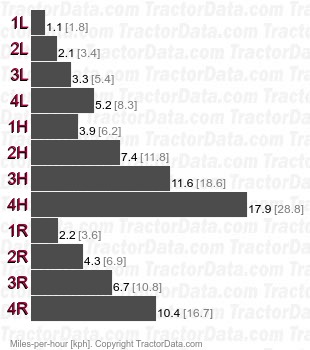

654  partially synchronized speeds
Transmission
TransmissionAgriomatic S
Typepartial power shift
Gears12 forward and 4 reverse
Oil capacity37 qts
35.0 L
The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle.
Speeds
With 11-36 rear tires.

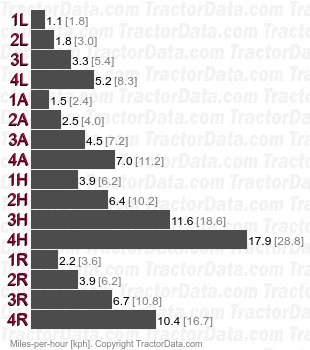

654 Agriomatic S partial power shift speeds
