International Harvester 724 Transmission


International Harvester 724 tractor photo
1969 - 1974
Model year
Utility tractor
Series map:
624
724
824
43.3kw
50.0kw
55.9kw
Transmission options
8-speed
12-speed partial power shift
Transmission
Transmissionpartially synchronized
Gears8 forward and 4 reverse

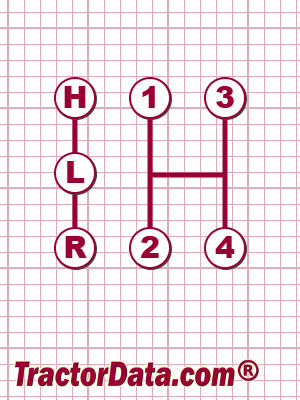

Four gears (1-4) in high, low, and reverse ranges. Gear shifting is synchronized using the clutch. Tractor must be stoppped to shift range.
Speeds
With 11-36 rear tires.

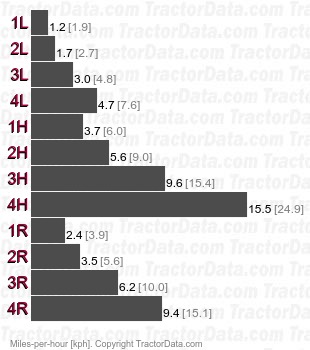

724 partially synchronized  speeds
Transmission
TransmissionAgriomatic S
Typepartial power shift
Gears12 forward and 4 reverse
The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle.
Speeds
With 11-36 rear tires.

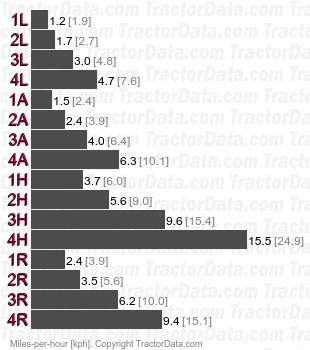

724 Agriomatic S partial power shift speeds
