Tractors > International Harvester > 724

International Harvester 724 Engine



International Harvester 724 tractor photo
1969 - 1974
Model year
Utility tractor
Series map:
624
724
824
43.3kw
50.0kw
55.9kw
Engine Detail
International Harvester D-239
diesel
4-cylinder
liquid-cooled
Displacement238.65 ci
3.9 L
Bore/Stroke3.875x5.06 inches
98 x 129 mm
Power67 hp
50.0 kW
Fuel systemdirect injection
Compression16:1
Rated RPM2200
Idle RPM650-2420
Torque165 lb-ft
223.7 Nm
Torque RPM1600
Firing order1-3-4-2
Intake valve clearance0.010 inches
0.254 mm
Exhaust valve clearance0.012 inches
0.305 mm
Engine Oil

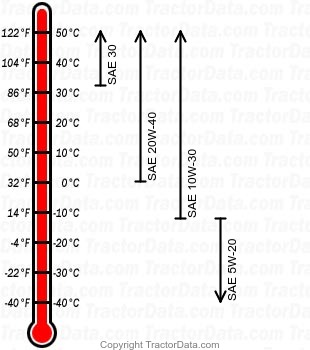

724 diesel engine oil chart
Oil capacity8.4 qts
7.9 L
Oil change200 h
