| | 1965 - 1972 |
| Utility tractor |
|
Series map:
523
624
38.8kw
43.3kw
| Transmission options |
| 8-speed |
| 12-speed partial power shift |
| Transmission |
| Gears | 8 forward and 4 reverse
|
| Clutch | 279.4mm dry disc
|
| Oil capacity | 35.1 qts
33.2 L
|
| Four gears (1-4) in two ranges (low/high) plus reverse range. |

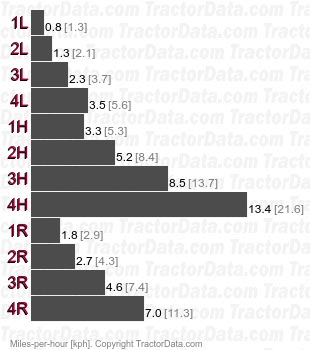

| Speeds |
| With 11x32 rear tires. |
|
| Transmission |
| Transmission | Agriomatic S
|
| Type | partial power shift
|
| Gears | 12 forward and 4 reverse
|
| The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle. |

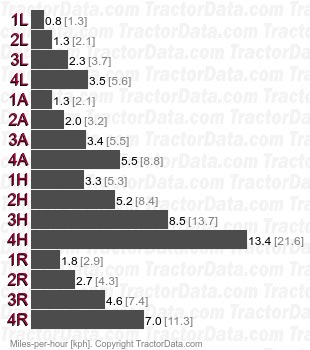

| Speeds |
| With 11x32 rear tires. |
|
