UTB/Universal 850 Transmission


UTB/Universal 850 tractor photo
1984 - 1991
Transmission options
12-speed partially synchronized
16-speed creeper
Transmission
Typepartially synchronized
Gears12 forward and 3 reverse
Clutch330.2mm dry disc
Four gears, plus reverse, in three ranges. Gear shifts are synchronized.
Speeds
With 16.9-38 rear tires.

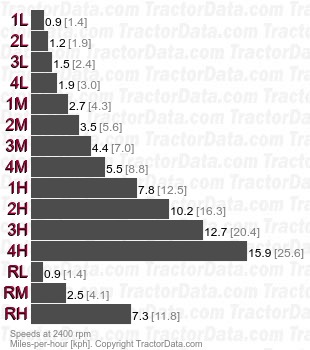

850  partially synchronized speeds
Transmission
Typecreeper
Gears16 forward and 4 reverse
Creeper adds an additional low range to the basic transmission.
Speeds
With 16.9-38 rear tires.

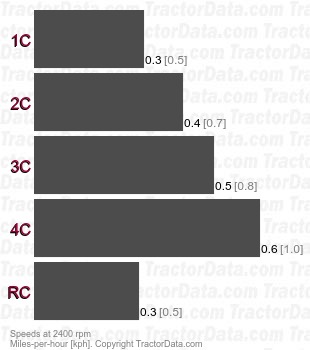

850  creeper speeds
