| | 1988 - 2004 |
| 3 Series | | Utility tractor |
|
Series map:
533
643
703
53.0hp
64.0hp
70.0hp
| Transmission options |
| 8-speed constant mesh |
| 12-speed creeper |
| 8-speed shuttle |
| Transmission |
| Type | constant mesh
|
| Gears | 8 forward and 2 reverse
|
| Clutch | dry disc
|
| Oil capacity | 24.3 qts
23.0 L
|
| Four gears (1-4) plus reverse (R) in two ranges (low and high). |
| Speeds |
| With 16.9-30 rear tires. |
|
| Transmission |
| Type | creeper
|
| Gears | 12 forward and 3 reverse
|
| Clutch | dry disc
|
| Optional creeper adds a third range to the basic transmission. |

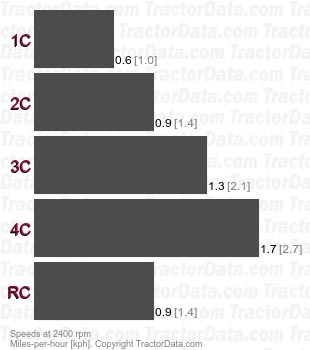

| Speeds |
| With 16.9-30 rear tires. |
|
| Transmission |
| Type | shuttle
|
| Gears | 8 forward and reverse
|
