Series map:
530
640
53.0hp
65.0hp
| Transmission options |
| 12-speed constant mesh |
| 8-speed shuttle |
| Transmission |
| Type | constant mesh
|
| Gears | 12 forward and 3 reverse
|
| Clutch | dry disc
|
| Four gears (1-4) plus reverse (R) in three ranges (creeper, low, and high). Gears 3 and 4 are synchronized. |

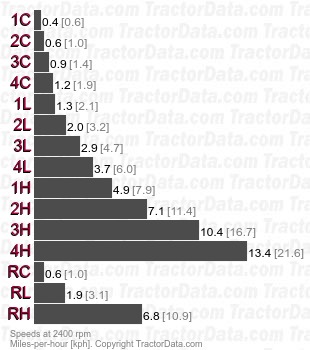

| Speeds |
| With 14.9x28 rear tires. |
|
| Transmission |
| Type | shuttle
|
| Gears | 8 forward and reverse
|
| Clutch | dry disc
|

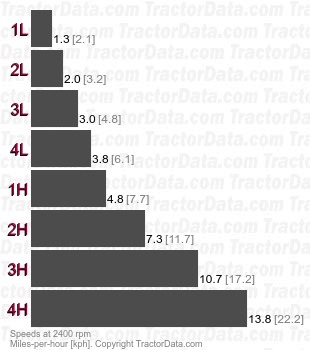

| Speeds |
| With 14.9x28 rear tires. Reverse speeds are 15% faster than forward. |
|
