Tractors > AGCO Allis > 9695

AGCO Allis 9695 Tests



AGCO Allis 9695 tractor photo
1994 - 1998
9600 Series
Row-Crop tractor
Series map:
9675
9695
194.4hp*
216.7hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1700

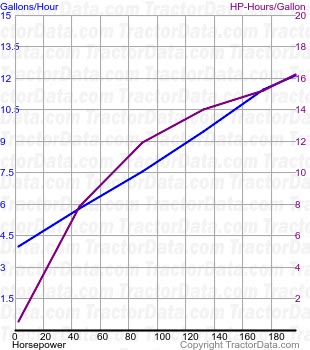

9695 fuel use from test 188
OCED Tractor Test 1700
Diesel 18-speed 4WD
September 8 - 21, 1995
Link: OCED Tractor Test 1700 file
PTO performance
Max power211.46 hp
157.7 kW
Fuel use12.0 gal/hour
45.4 l/hour
Power at rated engine speed196.57 hp
146.6 kW
Fuel use12.1 gal/hour
45.8 l/hour
Power at rated PTO speed204.47 hp
152.5 kW
Fuel use12.1 gal/hour
45.8 l/hour
Drawbar performance
Max power170.15 hp
126.9 kW
Fuel use12.2 gal/hour
46.2 l/hour
Gear 11 used for power test.
Max pull17583 lbs
7975 kg
Gear 6 used for pull test.
