Tractors > AGCO Allis > 9690

AGCO Allis 9690 Tests



AGCO Allis 9690 tractor photo
1994 - 1995
9600 Series
Row-Crop tractor
Series map:
9670
9690
194.4hp*
216.7hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1684

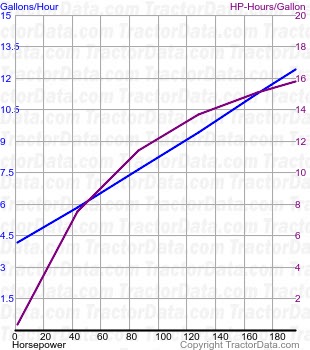

9690 fuel use from test 168
OCED Tractor Test 1684
Diesel 18-speed 4WD
October 4 - 19, 1994
Link: OCED Tractor Test 1684 file
PTO performance
Max power205.49 hp
153.2 kW
Fuel use12.0 gal/hour
45.4 l/hour
Power at rated engine speed195.63 hp
145.9 kW
Fuel use12.4 gal/hour
46.9 l/hour
Power at rated PTO speed205.49 hp
153.2 kW
Fuel use12.0 gal/hour
45.4 l/hour
Drawbar performance
Max power170.56 hp
127.2 kW
Fuel use12.5 gal/hour
47.3 l/hour
Gear 7 used for power test.
