AGCO Allis 7650 Transmission


AGCO Allis 7650 tractor photo
1991 - 1994
7600 Series
Row-Crop tractor
SLH built
Series map:
7630
7650
122.2hp
146.7hp
Transmission
Typesynchromesh
Gears24 forward and 12 reverse
Clutchhydraulic cerametallic 350mm disc
Oil capacity102.9 qts
97.4 L
Four gears (1-4) in three ranges (L/M/H) with additional two-speed high-low shift.

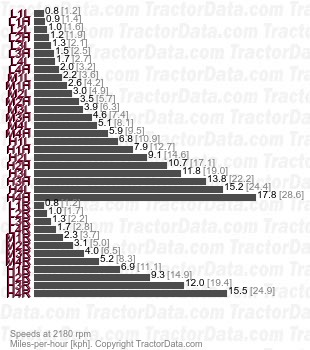

Speeds
With 18.4R38 rear tires.
7650  synchromesh speeds
