| | 1991 - 1992 |
| 7600 Series | | Row-Crop tractor | | SLH built |
|
Series map:
7600
7630
7650
95.2hp
122.2hp
146.7hp
| Transmission |
| Type | synchromesh
|
| Gears | 24 forward and 12 reverse
|
| Clutch | hydraulic cerametallic 350mm disc
|
| Oil capacity | 102.9 qts
97.4 L
|
| Four gears (1-4) in three ranges (L/M/H) with additional two-speed high-low shift. |

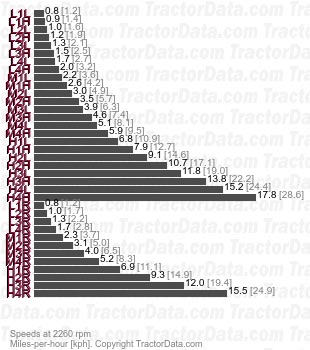

| Speeds |
| With 18.4R38 rear tires. |
|
