AGCO Allis 6690

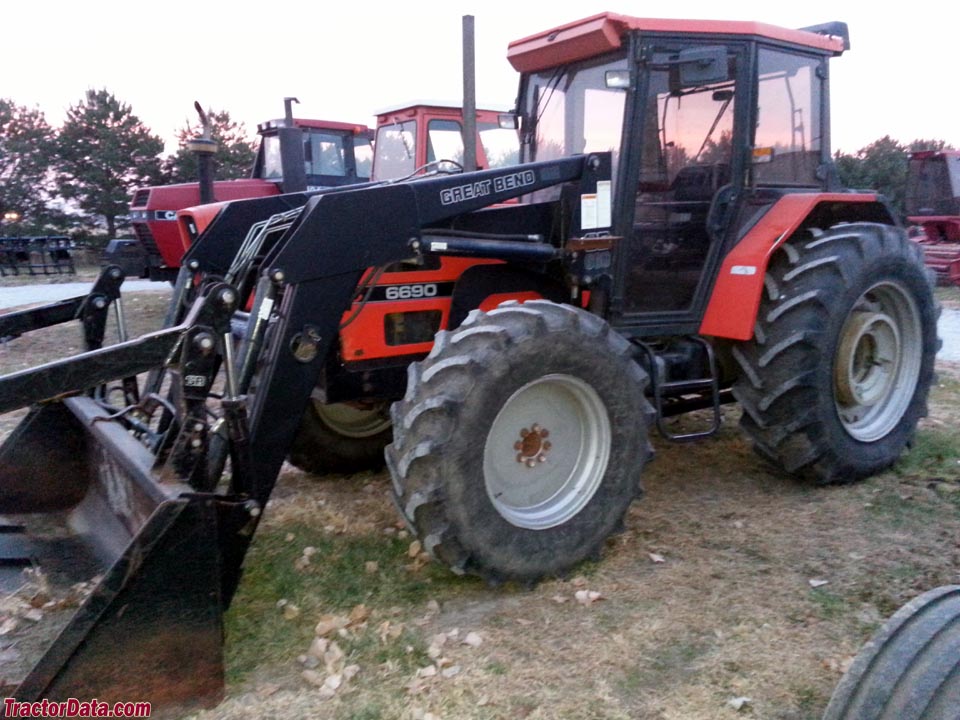

AGCO Allis 6690 tractor photo
1991 - 1997
6600 Series
Utility tractor
SAME built
Series map:
6680
6690
79.3hp
86.9hp
Production
DistributorAGCO Allis
ManufacturerSAME
Utility tractor
Built in Italy
Original price was $35,000 in 1997
Variants
Explorer II 90similar SAME model
AGCO Allis 6690 Transmissions
12-speed synchromesh
24-speed
16-speed
30-speed partial power shift
Transmission details ...
AGCO Allis 6690 Power
Engine86.91 hp
64.8 kW
PTO (claimed)80.88 hp
60.3 kW
Drawbar (tested)68.53 hp
51.1 kW
PTO (tested)80.85 hp
60.3 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Flat-deck with four-post ROPS. Cab optional with air-conditioning.
Capacity
Fuel28.27 gal
107.0 L
Hydraulic system15.2 gal
57.5 L
Hydraulics
Typeopen center
Capacity15.2 gal
57.5 L
Valves2
Pump flow11.23 gpm
42.5 lpm
Tractor hitch
Rear TypeII/I
Controlposition and draft control with lower-link sensing
Rear lift (at ends)6,790 lbs
3079 kg
Power Take-off (PTO)
Rear PTOindependent
Clutch124.5mm hydraulic wet disc
Rear PTO Type540/1000 (1.375)
Engine RPM540@2200
 1000@2450
Dimensions & Tires
2WD Wheelbase96.4 inches
244 cm
4WD Wheelbase92.8 inches
235 cm
Weight6724 to 7385 pounds
Front tire7.50-18
Rear tire16.9R34 (2WD)
Full dimensions and tires ...
6690 Serial Numbers
Location:Console, right side
19911001
19921427
19931506
19941669
19951888
19962010

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps55
Battery volts12
Battery AH100
References
6690 references literature
6600 Series published in 1991, by AGCO
