AGCO Allis 6670 Transmission


AGCO Allis 6670 tractor photo
1991 - 1999
6600 Series
Utility tractor
SAME built
Series map:
6670
6680
69.0hp
79.3hp
Transmission options
12-speed synchromesh
24-speed
16-speed
30-speed partial power shift
Transmission
Typesynchromesh
Gears12 forward and reverse
Clutch280mm dry disc
Oil capacity55 qts
52.1 L
Four synchronized gears in three ranges.

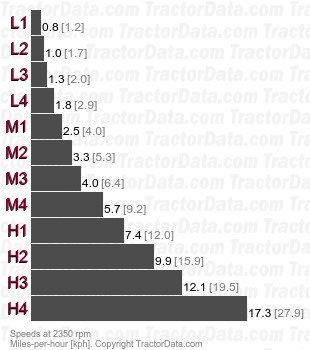

Speeds
With 16.9R30 rear tires.
6670  synchromesh speeds
Transmission
Gears24 forward and 12 reverse
Transmission
Gears16 forward and reverse
Transmission
Typepartial power shift
Gears30 forward and reverse
Five gears (1-5) in three ranges (L/M/H) with high-low power shift.
