AGCO Allis 5680 Tests


AGCO Allis 5680 tractor photo
1991 - 1997
5600 Series
Utility tractor
SAME built
Series map:
5670
5680
69.0hp
80.0hp
OCED Tractor Test 1091

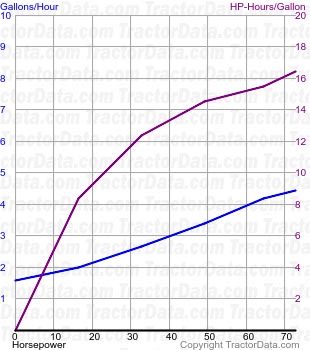

5680 fuel use from test 92
OCED Tractor Test 1091
Diesel 12-speed 4WD
7/1987
Link: OCED Tractor Test 1091 file
PTO performance
Power at rated engine speed72.7 hp
54.2 kW
Fuel use4.4 gal/hour
16.7 l/hour
Drawbar performance
Max power62.09 hp
46.3 kW
Fuel use5.2 gal/hour
19.7 l/hour
Gear 3N used for power test.
Max pull5860 lbs
2658 kg
Gear 3N used for pull test.
