AGCO Allis 5660 Tests


AGCO Allis 5660 tractor photo
1994 - 1999
5600 Series
SAME built
Series map:
5650
5660
5670
53.1hp*
63.2hp*
69.0hp
OCED Tractor Test 1501

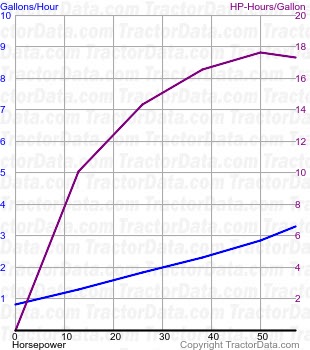

5660 fuel use from test 299
OCED Tractor Test 1501
Diesel 12-speed 4WD
July 1993 - 1993,
Link: OCED Tractor Test 1501 file
PTO performance
Power at rated engine speed57 hp
42.5 kW
Fuel use3.3 gal/hour
12.5 l/hour
Power at rated PTO speed56.3 hp
42.0 kW
Fuel use3.2 gal/hour
12.1 l/hour
Drawbar performance
Max power48.8 hp
36.4 kW
Fuel use3.3 gal/hour
12.5 l/hour
Gear 1F used for power test.
Max pull4795 lbs
2175 kg
Gear 3N used for pull test.
