AGCO Allis 5650 Transmission


AGCO Allis 5650 tractor photo
1994 - 1999
5600 Series
SAME built
Series map:
5650
5660
53.1hp*
63.2hp*
*Estimated engine power for comparison only.
Transmission options
12-speed sync shuttle
16-speed
Transmission
Typesync shuttle
Gears12 forward and reverse
Four gears (1-4) in three ranges (low, medium, high) with synchronized shuttle. Gear shifts are synchronized.

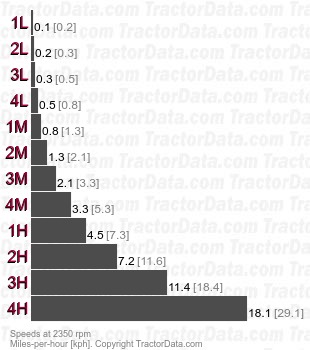

Speeds
With 13.6R28 rear tires. Reverse speeds are 8% slower than forward speeds.
5650  sync shuttle speeds
Transmission
Gears16 forward and 8 reverse
