Deutz D 6206 Transmission


Deutz D 6206 tractor photo
1974 - 1981
06 Series
Utility tractor
Series map:
D 6206
60.0hp
Transmission options
8-speed synchromesh
12-speed synchromesh with creeper
Transmission
TransmissionDeutz TW 50.3
Typesynchromesh
Gears8 forward and 4 reverse
Four gears in two ranges, plus reverse range. A ninth, 30 kph, overdrive gear was optional in some markets.
Speeds
With 12.4/11-36 rear tires.
D 6206 Deutz TW 50.3 synchromesh speeds
Transmission
TransmissionDeutz TW 50.3
Typesynchromesh with creeper
Gears12 forward and 4 reverse
Speeds
With 12.4/11-36 rear tires.

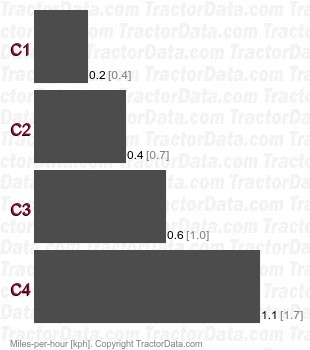

D 6206 Deutz TW 50.3 synchromesh with creeper speeds
