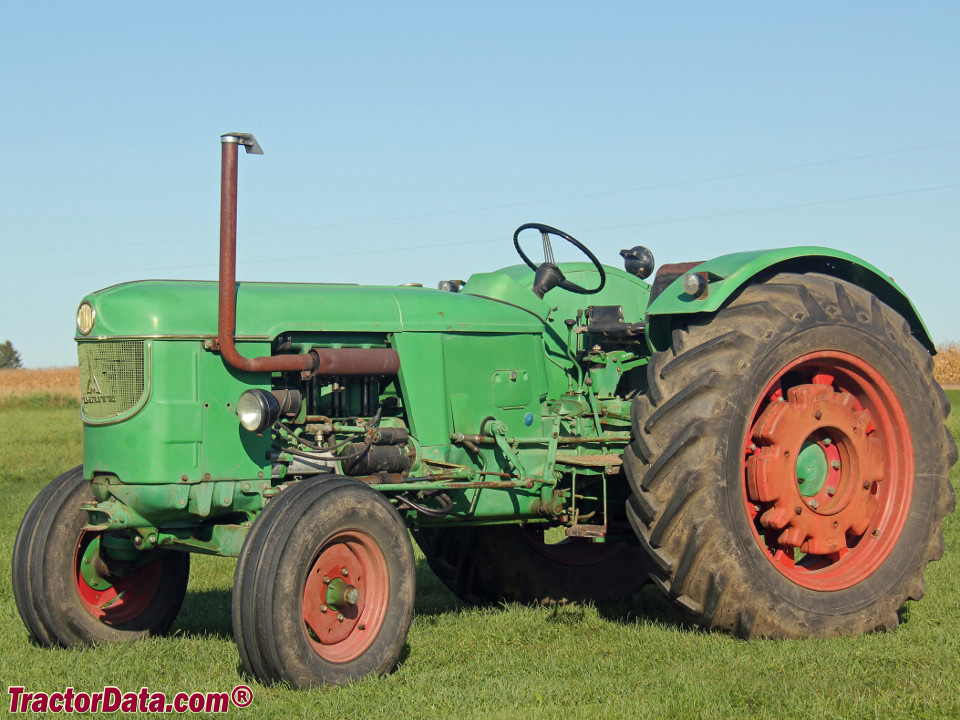

Deutz D 5505
| | 1965 - 1966 |
| 05 Series | | Row-Crop tractor |
|
| Production |
| Manufacturer | Deutz
|
| Row-Crop tractor |
| Deutz D 5505 Power |
| Engine | 51.3 hp
38.3 kW
|
| Mechanical |
| Two-wheel drive |
| Manual steering |
| Mechanical drum brakes |
| Open operator station. |
| Hydraulics |
| Pump flow | 7.1 gpm
26.9 lpm
|
| Tractor hitch |
| Rear lift | 4851 lbs
2200 kg
|
| Power Take-off (PTO) |
| Rear PTO Type | 540/1000 (1.375)
|
| Engine RPM | 540@2075
|
| | 1000@1970
|
