Deutz-Fahr DX 4.30 Transmission


Deutz-Fahr DX 4.30 tractor photo
1983 - 1989
DX4 Series
Utility tractor
Series map:
DX 4.10
DX 4.30
DX 4.50
51.0kw
55.0kw
60.0kw
Transmission options
15-speed synchronized
20-speed creeper
Transmission
Typesynchronized
Gears15 forward and 5 reverse
Five gears (1-5) in three ranges (L/M/H) plus reverse (R) range.
Speeds
With 18.4-34 rear tires

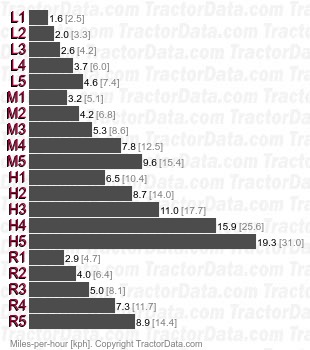

DX 4.30  synchronized speeds
Transmission
Typecreeper
Gears20 forward and 5 reverse
Speeds
With 18.4-34 rear tires.

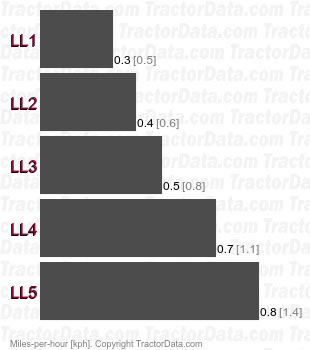

DX 4.30  creeper speeds
