| | 1985 - 1988 |
| DX4 Series | | Utility tractor |
|
Series map:
DX 4.10
DX 4.30
51.0kw
55.0kw
| Transmission options |
| 15-speed synchronized |
| 20-speed creeper |
| Transmission |

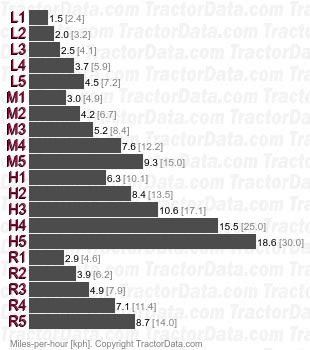

| Type | synchronized
|
| Gears | 15 forward and 5 reverse
|
| Five gears (1-5) in three ranges (L/M/H) plus reverse (R) range. |
| Speeds |
| With 18.4-34 rear tires. |
|
| Transmission |

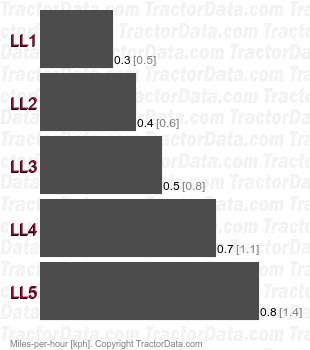

| Type | creeper
|
| Gears | 20 forward and 5 reverse
|
| Speeds |
| With 18.4-34 rear tires. |
|
