Deutz-Fahr DX 160 Tests


Deutz-Fahr DX 160 tractor photo
1978 - 1983
DX Series
Row-Crop tractor
Series map:
DX 140
DX 160
145.6hp*
150.0hp
Nebraska Tractor Test 1307

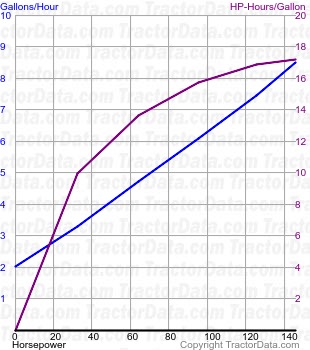

DX 160 fuel use from test 1307
Nebraska Tractor Test 1307
Diesel 24-speed 2WD
April 24 - May 2, 1979
Link: Nebraska Tractor Test 1307 file
PTO performance
Power at rated engine speed145.41 hp
108.4 kW
Fuel use8.4 gal/hour
31.8 l/hour
Power at rated PTO speed140.99 hp
105.1 kW
Fuel use7.9 gal/hour
29.9 l/hour
Drawbar performance
Max power121.64 hp
90.7 kW
Fuel use8.4 gal/hour
31.8 l/hour
Gear 3ZH used for power test.
Max pull15172 lbs
6882 kg
Gear 1ZH used for pull test.
