Deutz-Fahr D 3607
| | 1982 - 1988 |
| 07 Series | | Utility tractor |
|
| Production |
| Manufacturer | Deutz-Fahr
|
| Utility tractor |
| Deutz-Fahr D 3607 Power |
| Engine | 34 hp
25.4 kW
|
| Mechanical |
| Two-wheel drive |
| Differential lock | mechanical rear
|
| Power steering |
| Mechanical drum brakes |
| Four-post ROPS. |
| Hydraulics |
| Type | open center
|
| Pressure | 2538 psi
175.0 bar
|
| Valves | 1 to 3
|
| Pump flow | 9.25 gpm
35.0 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift (at ends) | 4189 lbs
1900 kg
|
| Power Take-off (PTO) |
| Rear PTO | live
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2077
|
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on January 7, 2022 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

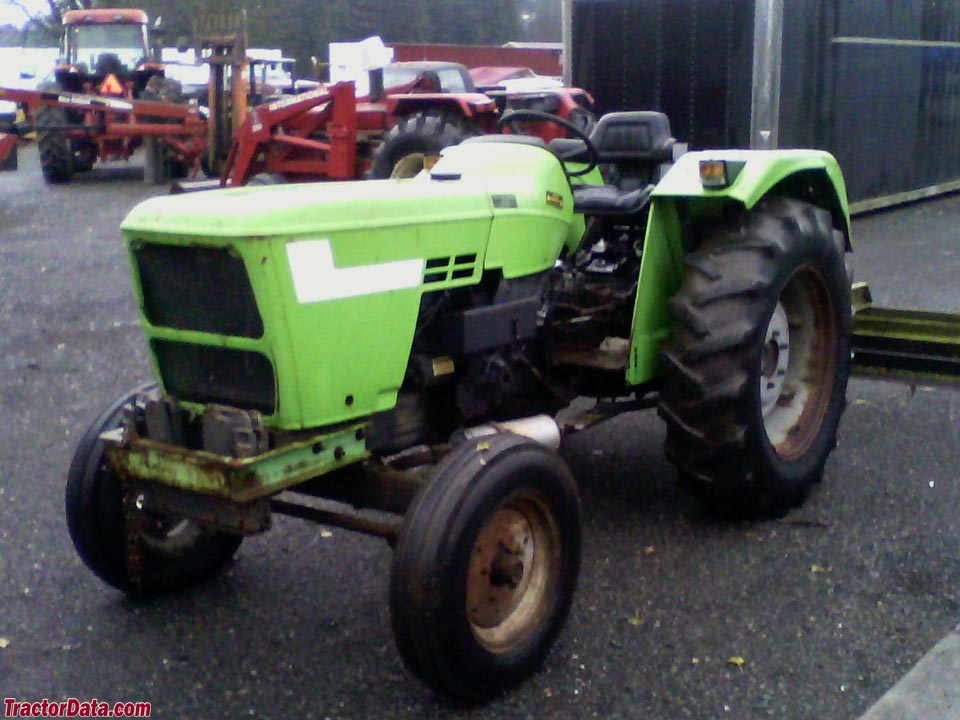

Deutz-Fahr D 3607 photos...
