Series map:
90-90
100-90
67.1kw
74.6kw
| Transmission options |
| 15-speed synchronized |
| 20-speed creeper |
| Transmission |
| Type | synchronized
|
| Gears | 15 forward and 3 reverse
|
| Clutch | dry disc
|
| Five gears, plus reverse, in three ranges. A 40 KPH gearbox was available with four-wheel drive. |

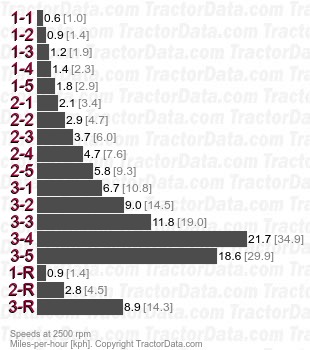

| Speeds |
|
| Transmission |
| Type | creeper
|
| Gears | 20 forward and 4 reverse
|
| Clutch | dry disc
|
