Fiat 350
| Production |
| Manufacturer | Fiat
|
| Fiat 350 Power |
| Engine | 35 hp
26.1 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Final drives | spur gear
|
| Differential lock | mechanical rear
|
| Manual steering |
| Mechanical band brakes |
| Open operator station. |
| Hydraulics |
| Type | open center
|
| Pump flow | 3.8 gpm
14.4 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position and draft control
|
| Rear lift | 2469 lbs
1119 kg
|
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| | live OptOptional
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2120
|
| Engine RPM | 1105@2500
|
| Belt Pulley |
| Diameter | 9.8 inches
24 cm
|
| Width | 5.9 inches
14 cm
|
| RPM | 1300
|
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| Battery AH | 77
|
| References |
 |
| 350 published in 1971, by Fiat |
| 350 DT published in 1971, by Fiat |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on April 27, 2023 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

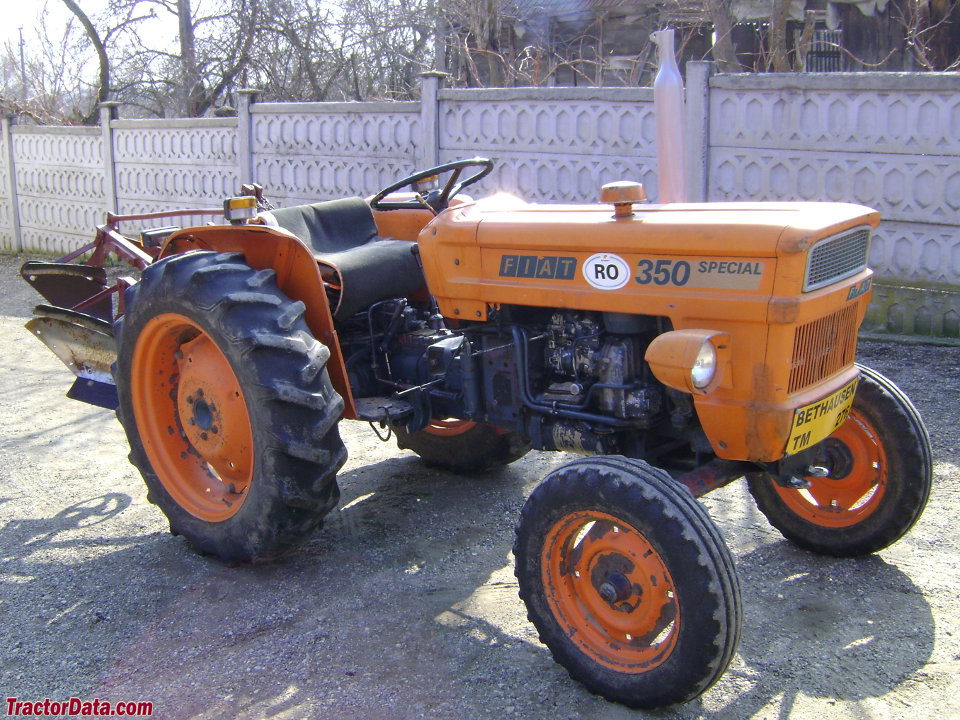

Fiat 350 photos...
