Fiat 415
| Production |
| Manufacturer | Fiat
|
| Fiat 415 Power |
| Engine | 44 hp
32.8 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Open operator station. |
| Hydraulics |
| Pump flow | 4.9 gpm
18.5 lpm
|
| Tractor hitch |
| Rear lift | 2646 lbs
1200 kg
|
| Power Take-off (PTO) |
| Rear PTO | live (two-stage cluch)
|
| Rear PTO Type | 540
|
| Electrical |
| Ground | negative
|
| Charging system | generator
|
| Charging amps | 8
|
| Charging volts | 24
|
| Batteries | 2
|
| Battery volts | 12
|
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on December 13, 2016 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

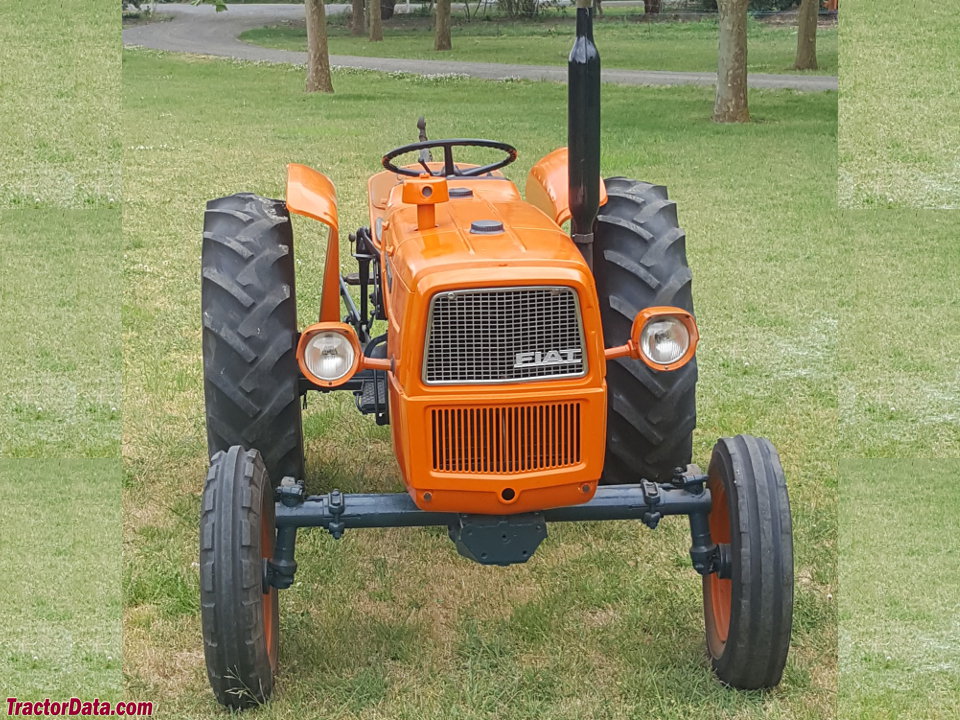

Fiat 415 photos...
