| | 1992 - 1997 |
| 65 Series | | Utility tractor |
|
Series map:
565
665
865
55.9kw
59.7kw
64.5kw
| Transmission options |
| 8-speed synchromesh |
| 12-speed creeper |
| Transmission |
| Type | synchromesh
|
| Gears | 8 forward and 4 reverse
|
| Four gears (1-4) in two ranges (low/high) plus reverse range. |

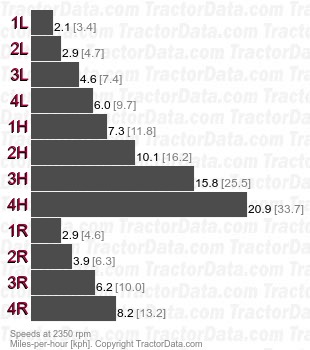

| Speeds |
| With 16.9R30 rear tires. |
|
| Transmission |
| Type | creeper
|
| Gears | 12 forward and 8 reverse
|
| Creeper option adds an additional four speeds forward and reverse. |

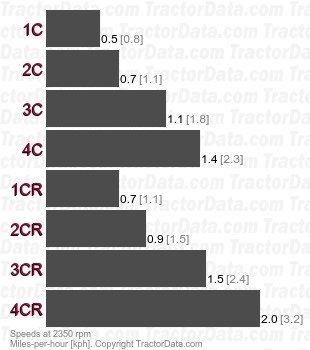

| Speeds |
| With 16.9R30 rear tires. |
|
