Valmet 565 Transmission


Valmet 565 tractor photo
1993 - 1997
65 Series
Utility tractor
Series map:
465
565
665
52.2kw
55.9kw
59.7kw
Transmission options
8-speed
12-speed creeper
Transmission
Gears8 forward and 4 reverse
Four gears (1-4) in two ranges (low/high) plus reverse range.
Speeds
With 16.9R30 rear tires.

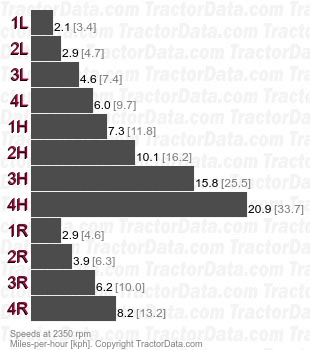

565   speeds
Transmission
Typecreeper
Gears12 forward and 8 reverse
Creeper option adds an additional four speeds forward and reverse.
Speeds
With 16.9R30 rear tires.

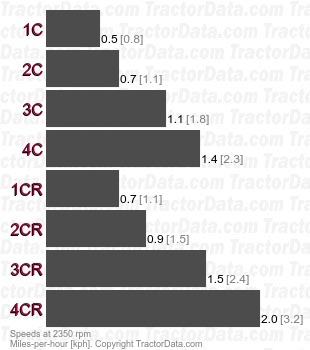

565  creeper speeds
