| | 1990 - 1992 |
| 05 Series | | Utility tractor |
|
Series map:
455
555
50.0kw
53.7kw
| Transmission options |
| 8-speed |
| 8-speed creeper |
| Transmission |
| Gears | 8 forward and 4 reverse
|
| Clutch | 280mm dry disc
|
| Four gears (1-4) in two ranges (low/high) plus reverse range. |

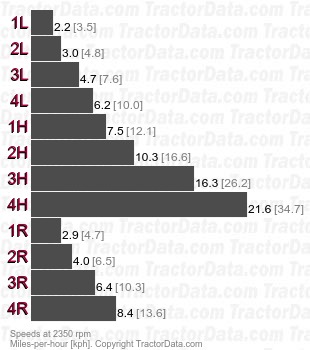

| Speeds |
| With 13.6-36 rear tires. |
|
| Transmission |
| Type | creeper
|
| Gears | 8 forward and 4 reverse
|
| Clutch | 280mm dry disc
|
| Creeper range provides an addition four gears forward and reverse. |

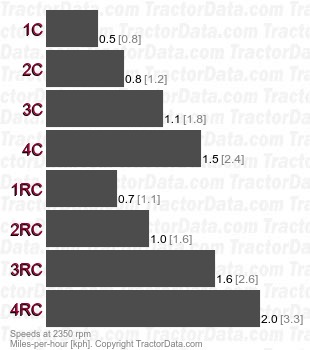

| Speeds |
| With 13.6-36 rear tires. |
|
