| | 1989 - 1994 |
| 55 Series | | Utility tractor |
|
Series map:
355
455
555
45.5kw
50.0kw
53.7kw
| Transmission options |
| 8-speed synchromesh |
| 12-speed creeper |
| Transmission |
| Type | synchromesh
|
| Gears | 8 forward and 4 reverse
|
| Clutch | 280mm dry disc
|
| Four gears (1-4) in two ranges (low/high) plus reverse range. |

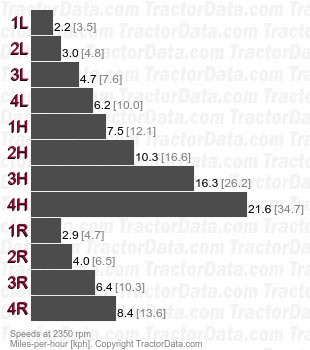

| Speeds |
| With 13.6-36 rear tires. |
|
| Transmission |
| Type | creeper
|
| Gears | 12 forward and 8 reverse
|
| Clutch | 280mm dry disc
|
| Creeper range provides an additional four gears forward and reverse. |

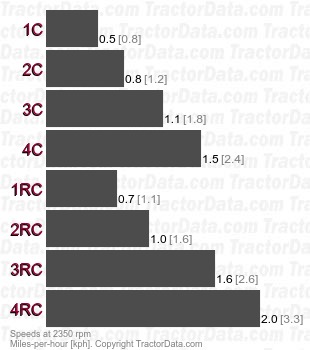

| Speeds |
| With 13.6-36 rear tires. |
|
