| | 1984 - 1991 |
| 05 Series | | Row-Crop tractor |
|
Series map:
805
905
70.8kw
78.3kw
| Transmission options |
| 8-speed synchromesh |
| 16-speed two-speed power shift |
| Transmission |
| Type | synchromesh
|
| Gears | 8 forward and 4 reverse
|
| Clutch | 330mm dry disc
|
| Four synchronized gears (1-4) in two ranges (low/high) plus reverse range. |

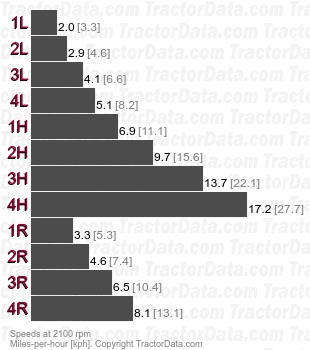

| Speeds |
| With 16.9R38 rear tires. |
|
| Transmission |
| Type | two-speed power shift
|
| Gears | 16 forward and 8 reverse
|
| A push-button two-speed powershift added to the basic transmission. |

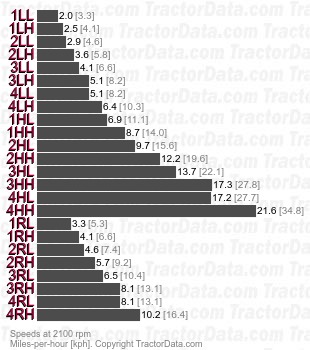

| Speeds |
| With 16.9R38 rear tires. |
|
