| | 1982 - 1991 |
| 05 Series | | Row-Crop tractor |
|
Series map:
505
605
705
48.5kw
55.9kw
63.4kw
| Transmission options |
| 8-speed synchromesh |
| 16-speed two-speed power shift |

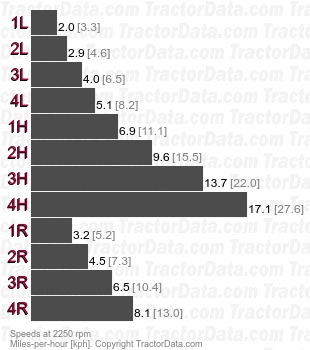

| Transmission |
| Type | synchromesh
|
| Gears | 8 forward and 4 reverse
|
| Clutch | 310mm dry disc
|
| Four synchronized gears (1-4) in two ranges (low/high) plus reverse range. |
| Speeds |
| With 16.9-34 rear tires. |
|

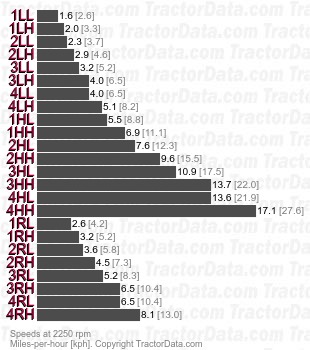

| Transmission |
| Type | two-speed power shift
|
| Gears | 16 forward and 8 reverse
|
| A push-button two-speed powershift added to the basic transmission. |
| Speeds |
| With 16.9-34 rear tires. |
|
