| | 1997 - 2002 |
| 100 Series | | Utility tractor |
|
Series map:
600
700
44.7kw
52.2kw
| Transmission options |
| 8-speed synchromesh |
| 16-speed splitter |
| 12-speed creeper |
| Transmission |

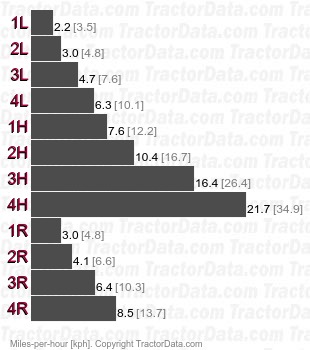

| Type | synchromesh
|
| Gears | 8 forward and 4 reverse
|
| Four gears in two ranges, plus reverse range. |
| Speeds |
| With 16.9R34 rear tires. |
|
| Transmission |

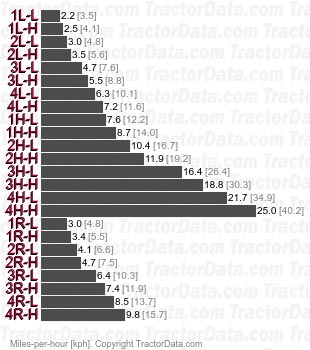

| Type | splitter
|
| Gears | 16 forward and 8 reverse
|
| Speeds |
| With 16.9R34 rear tires. |
|
| Transmission |

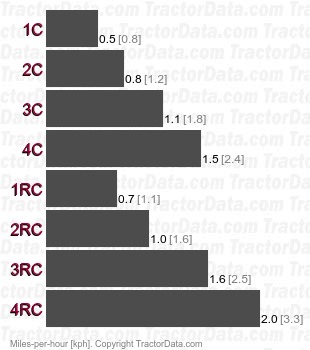

| Type | creeper
|
| Gears | 12 forward and 8 reverse
|
| Speeds |
| With 16.9R34 rear tires. |
|
