Tractors > Cub Cadet > 7532

Cub Cadet 7532 Engine



Cub Cadet 7532 tractor photo
2004 - 2010
Compact Utility tractor
Mitsubishi built
Series map:
7530
7532
30.0hp
32.0hp
Engine Detail
Mitsubishi K3M
turbocharged diesel
3-cylinder
liquid-cooled
Displacement91.29 ci
1.5 L
Bore/Stroke3.307x3.543 inches
84 x 90 mm
Power32 hp
23.9 kW
Fuel systemBosch pump with DLLA 150 P injectors
Pre-heatingglow plugs
 thermostart
Compression18:1
Rated RPM2500
Firing order1-3-2
Starter volts12
Coolant capacity5.8 qts
5.5 L
Intake valve clearance0.010 inches (cold)
0.254 mm
Exhaust valve clearance0.010 inches (cold)
0.254 mm
Engine Oil

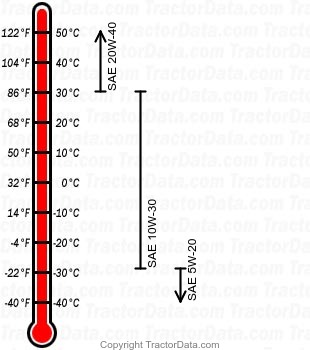

7532 diesel engine oil chart
Oil capacity5.3 qts
5.0 L
Oil change100 h

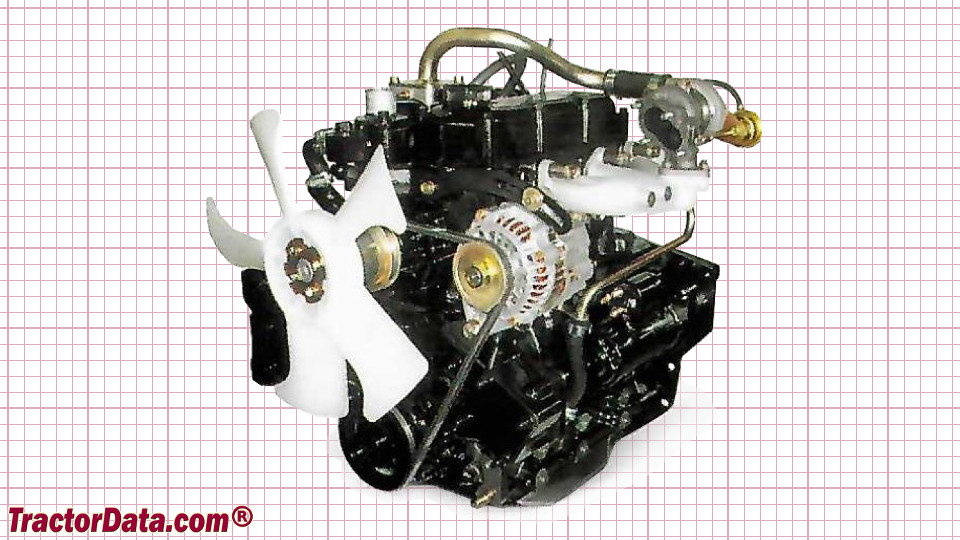

Cub Cadet 7532 Engine
Cub Cadet 7532 engine image
