Cub Cadet 7530
| | 2004 - 2010 |
| Compact Utility tractor | | Mitsubishi built |
|
Series map:
7530
7532
30.0hp
32.0hp
| Production |
| Distributor | Cub Cadet
|
| Manufacturer | Mitsubishi
|
| Compact Utility tractor |
| Original price was $12,800 in 2007 |
| Cub Cadet 7530 Power |
| Engine | 30 hp
22.4 kW
|
| PTO (claimed) | 26 hp
19.4 kW
|
| Mechanical |
| Four-wheel drive |
| Power steering |
| Mechanical wet disc brakes |
| Two-post folding ROPS. |
| Capacity |
| Fuel | 7.1 gal
26.9 L
|
| Hydraulic system | 7.9 gal
29.9 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 7.9 gal
29.9 L
|
| Pump flow | 7.2 gpm
27.3 lpm
|
| Total flow | 10.4 gpm
39.4 lpm
|
| Steering flow | 3.3 gpm
12.5 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| Rear lift (at ends) | 2646 lbs
1200 kg
|
| Rear lift (at 24"/610mm) | 1720 lbs
780 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2376
|
| Mid PTO | optional
|
| Mid PTO Type | 2000
|

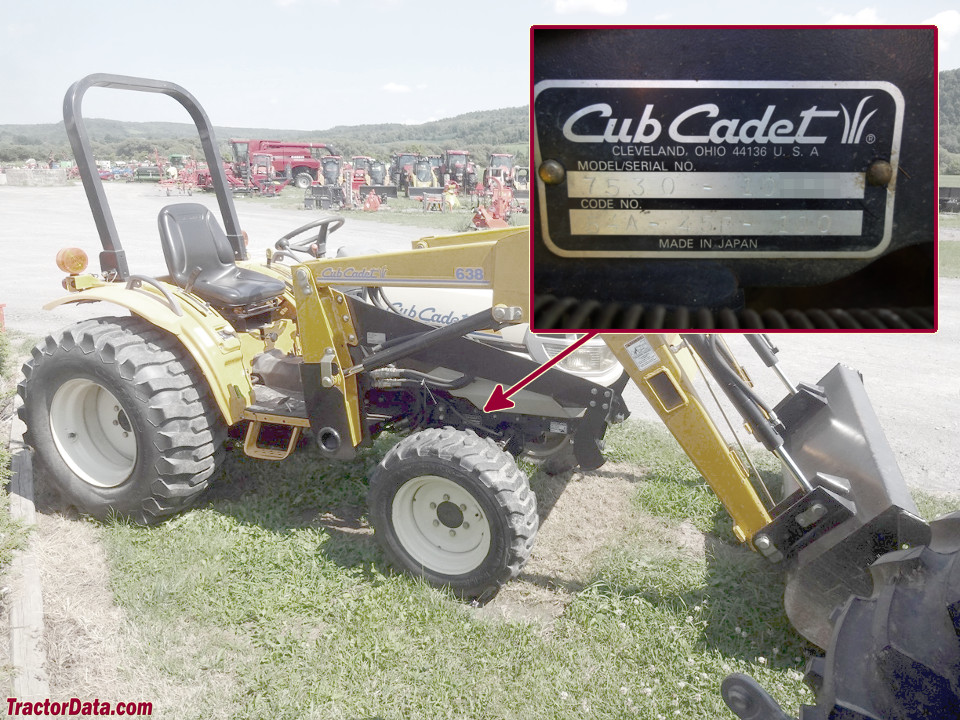

| 7530 Serial Number Location |
 |
| Serial number plate on the right side of the 7530 tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 50
|
| Charging volts | 12
|
| Battery CCA | 500
|
| Battery volts | 12
|
| References |
 |
| Outdoor Power Equipment published in 2004, by Cub Cadet |
| Compact Tractors published in 2005, by Cub Cadet |
| Compact Tractors published in 2006, by Cub Cadet |
