Cub Cadet 6284D
|
|
| Production | |
| Manufacturer | Cub Cadet (a part of MTD) |
| Compact Utility tractor | |
| Original price was $12,999 in 2007 | |
| Cub Cadet 6284D Engine | |
| Caterpillar 1.1L 3-cyl diesel | |
| Fuel tank | 6 gal 22.7 L |
 Engine details ... | |
| Cub Cadet 6284D Transmission | |
| hydrostatic | |
 Transmission details ... |
| Cub Cadet 6284D Power | |
| Engine | 28 hp 20.9 kW |
| PTO (claimed) | 21 hp 15.7 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Expanding dry shoe brakes | |
| Two-post folding ROPS. |
| Photos | |
| No photos of the Cub Cadet 6284D are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Hydraulics | |
| Type | open center |
| Pressure | 1500 psi 103.4 bar |
| Valves | 1 |
| Pump flow | 5 gpm 18.9 lpm |
| Total flow | 8 gpm 30.3 lpm |
| Steering flow | 3 gpm 11.4 lpm |
| Tractor hitch | |
| Rear Type | I |
| Rear lift (at ends) | 1150 lbs 521 kg |
| Rear lift (at 24"/610mm) | 950 lbs 430 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Mid PTO | independent |
| Mid PTO Type | 2000 (1.00) |
| Dimensions & Tires | |
| Wheelbase | 58 inches 147 cm |
| Weight | 1953 lbs 885 kg |
 Full dimensions and tires ... | |
| Cub Cadet 6284D attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |

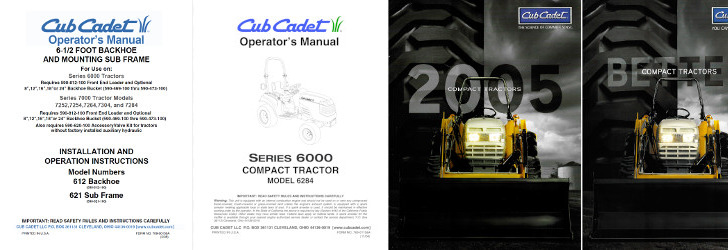

| References | |
 | |
| Operator's Manual 612 Backhoe (769-00150A) published in 2005 | |
| Compact Tractors published in 2005, by Cub Cadet | |
| Compact Tractors published in 2006, by Cub Cadet |
