Tractors > Cub Cadet > 5254

Cub Cadet 5254 Engine



Cub Cadet 5254 tractor photo
2004 - 2008
5000 Series
Sub-Compact Utility tractor
Series map:
5252
5254
5234D
25.0hp
25.0hp
23.0hp
Engine Detail
Kawasaki
gasoline
2-cylinder
liquid-cooled
Displacement45.5 ci
0.7 L
Bore/Stroke3.07x3.07 inches
78 x 78 mm
Power25 hp
18.6 kW
Fuel systemtwin carburetor
Rated RPM3600
Idle RPM1450-3600
Starter volts12
Coolant capacity3.5 qts
3.3 L
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.006 inches (cold)
0.152 mm
Exhaust valve clearance0.006 inches (cold)
0.152 mm
Engine Oil

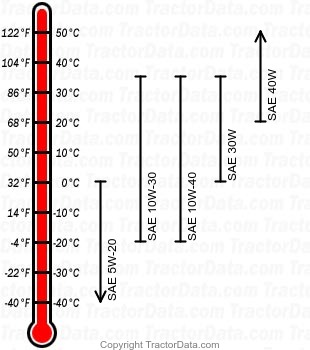

5254 gasoline engine oil chart
Oil capacity2.1 qts
2.0 L
Oil change100 h
