Kubota L3400 Transmission


Kubota L3400 tractor photo
2004 - 2010
Model year
Standard L Series
Compact Utility tractor
Series map:
L2800
L3400
L4400
29.0hp
34.7hp
45.3hp
Transmission options
hydrostatic
8-speed constant mesh
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (3-range)
Oil capacity29.2 qts
27.6 L
Speeds
With 11.2-24 rear tires.
L3400  hydrostatic speeds
Transmission
Typeconstant mesh
Gears8 forward and 4 reverse
Oil capacity29.2 qts
27.6 L
Four gears (1-4) in two ranges (Low/High) and reverse (R). Mechanical shuttle shifting between forward-low and reverse.
Speeds
With 11.2-24 rear tires.

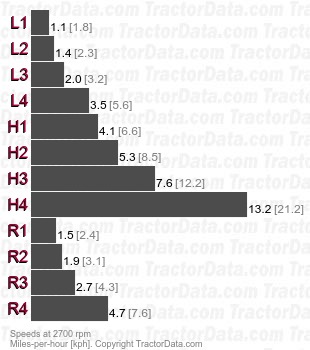

L3400  constant mesh speeds
