| | 2004 - 2010 |
|
| Standard L Series | | Compact Utility tractor |
|
Series map:
L2800
L3400
29.0hp
34.7hp
| Transmission options |
| hydrostatic |
| 8-speed |
| Transmission |
| Type | hydrostatic
|
| Gears | infinite forward and reverse (3-range)
|
| Speeds |
| With 11.2-24 rear tires. |
|
| Transmission |
| Transmission | constant mesh
|
| Gears | 8 forward and 4 reverse
|
| Clutch | dry
|
| Oil capacity | 29.2 qts
27.6 L
|
| Four gears (1-4) in two ranges (Low/High) and reverse (R). Mechanical shuttle shifting between forward-low and reverse. |

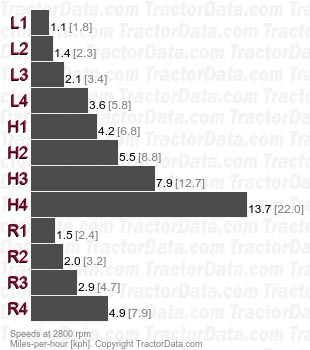

| Speeds |
| With 11.2-24 rear tires. |
|
