Kubota M7040
|
|
| Production | |
| Manufacturer | Kubota |
| Utility tractor | |
| Variants | |
| M7040SU | economy model |
| M7040HDN | narrow chassis |
| M7040F | 2WD ROPS sync-shuttle |
| M7040FC | 2WD cab sync-shuttle |
| M7040DT | 4WD ROPS sync-shuttle |
| M7040HD | 4WD ROPS hyd-shuttle |
| M7040DTC | 4WD cab sync-shuttle |
| M7040HDC | 4WD cab hyd-shuttle |
| Kubota M7040 Engine | |
| Kubota 3.3L 4-cyl diesel | |
 Engine details ... |
| Kubota M7040 Transmissions | |
| 8-speed partially synchronized | |
| 8-speed power shuttle | |
 Transmission details ... |
| Kubota M7040 Power | |
| Engine (net) | 67 hp 50.0 kW |
| PTO (claimed) | 62 hp 46.2 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | mechanical rear |
| Power steering | |
| Wet disc brakes | |
| Two-post ROPS with optional canopy. Ultra Grand Cab optional with heat and air-conditioning | |

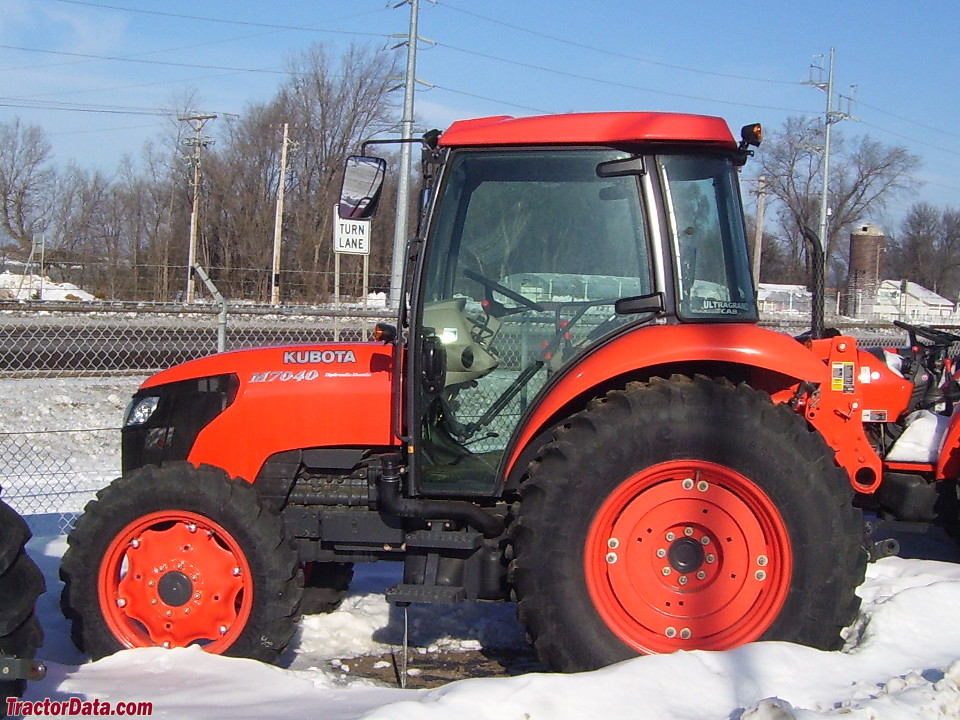

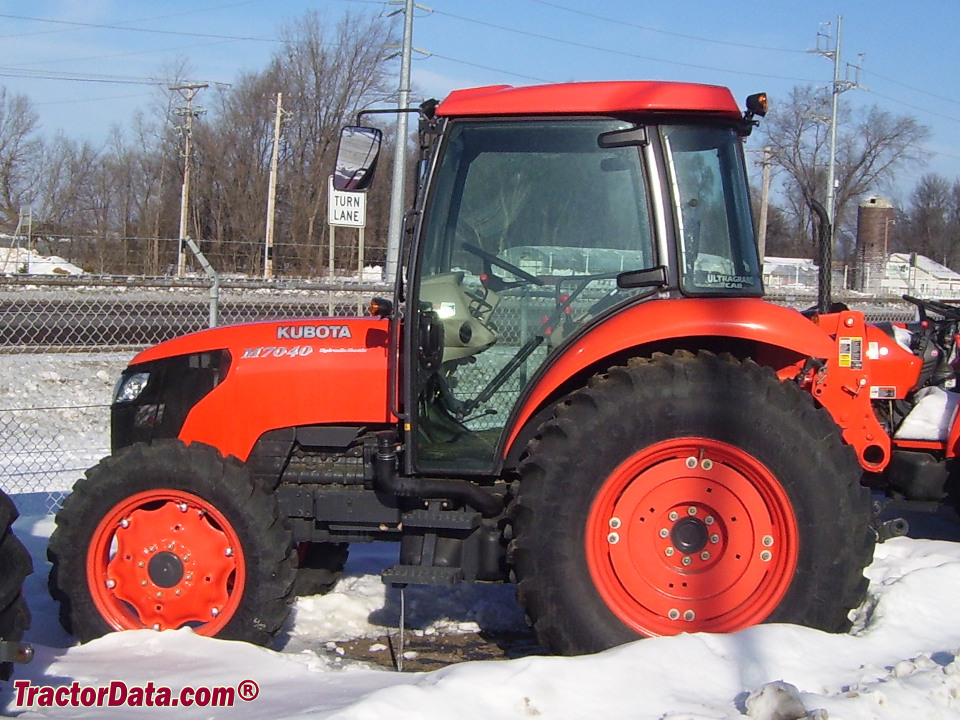

| Photos | |
 | |
 Kubota M7040 photos... | |
| Capacity | |
| ROPS, 29.1 Cab} Fuel | 18.5 gal 70.0 L |
| Hydraulic system | 10.6 gal 40.1 L |
| Front axle | 8.5 qts 8.0 L |
| Hydraulics | |
| Type | open center |
| Capacity | 10.6 gal 40.1 L |
| Pressure | 2770 psi 191.0 bar |
| Valves | 1 to 3 |
| Pump flow | 11 gpm 41.6 lpm |
| Total flow | 17.2 gpm 65.1 lpm |
| Steering flow | 6.1 gpm 23.1 lpm |
| Tractor hitch | |
| Rear Type | II |
| Rear lift (at ends) | 4200 lbs 1905 kg |
| Rear lift (at 24"/610mm) | 3307 lbs 1500 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@2295 |
| Dimensions & Tires | |
| Wheelbase | 80.7 inches (4WD ROPS) 204 cm |
| 82.1 inches (2WD ROPS) 208 cm | |
| 83.1 inches (4WD cab) 211 cm | |
| 84.4 inches (2WD cab) 214 cm | |
| Weight | 4675 to 5470 pounds |
| Front tire | 7.50-16 |
| Rear tire | 16.9-30 (2WD) |
 Full dimensions and tires ... | |
| Kubota M7040 attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 45 (ROPS) |
| 60 (cab) | |
| 80 (optional) | |
| Battery CCA | 900 |
| Battery volts | 12 |
| References | |
 | |
| M5040/M6040/M7040/M8540/M9540 published in 2005, by Kubota | |
| New Product Guide M-Series Tractors published in 2005, by Kubota |
