Tractors > Kubota > L5240

Kubota L5240 Transmission



Kubota L5240 tractor photo
2007 - ????
L40 Series
Compact Utility tractor
Series map:
L5040
L5240
L5740
52.0hp
54.0hp
59.0hp
Transmission
TransmissionHST Plus
Typehydrostatic
Gearsinfinite forward and reverse (3-range)
Oil capacity47.6 qts
45.0 L
Controlled by treadle foot pedal, cruise control standard with left-hand lever. Three range with Hydro Dual Speed, a high/low power shift controlled by left-hand lever. Auto Hydro Dual speed allows automatic control to match load. Stall Guard maintains engine RPMs by reducing speed under load. HST Response Control adjusts acceleration rates. Auto Throttle Advance links engine RPMs to transmission, so that the throttle increases when speed is increased.
Speeds

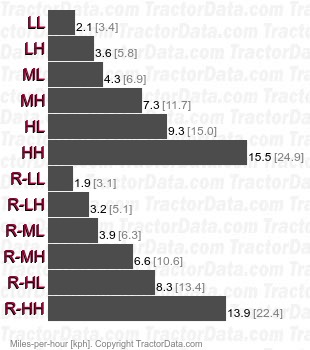

L5240 HST Plus hydrostatic speeds
Shift Pattern

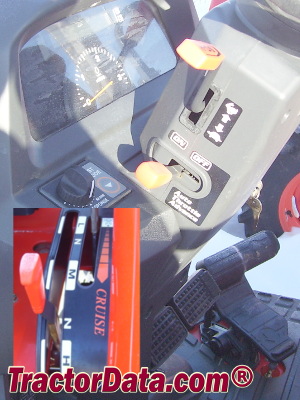

Kubota L5240 transmission controls
