| | 2007 - 2013 |
| L40 Series | | Compact Utility tractor |
|
Series map:
L3240
L3540
34.0hp
37.0hp
| Transmission options |
| hydrostatic |
| 8-speed |
| 12-speed |
| Transmission |
| Transmission | HST Plus
|
| Type | hydrostatic
|
| Gears | infinite forward and reverse (3-range)
|
| Oil capacity | 44.4 qts
42.0 L
|

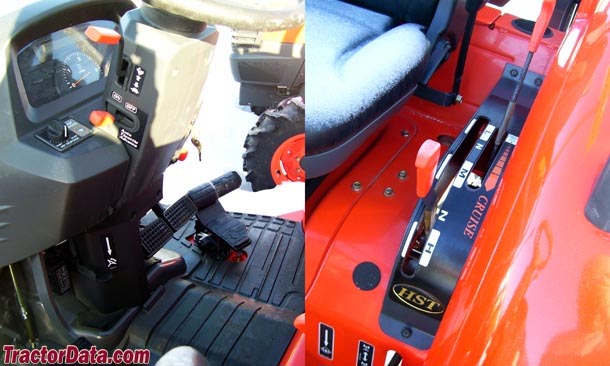

| Controlled by treadle foot pedal, cruise control standard with left-hand lever. Three range with Hydro Dual Speed, a high/low power shift controlled by left-hand lever. Auto Hydro Dual speed allows automatic control to match load. Stall Guard maintains engine RPMs by reducing speed under load. HST Response Control adjusts acceleration rates. Auto Throttle Advance links engine RPMs to transmission, so that the throttle increases when speed is increased. |
| Speeds |
|
| Shift Pattern |
 |
| Transmission |
| Transmission | FST sync shuttle
|
| Gears | 8 forward and reverse
|
| Oil capacity | 44.4 qts
42.0 L
|
| Four gears (1-4) in two ranges (Low/High) with shuttle. |
| Speeds |
|
| Transmission |
| Transmission | Glide Shift (GST)
|
| Gears | 12 forward and 8 reverse
|
| Oil capacity | 44.4 qts
42.0 L
|
| Speeds |
|
